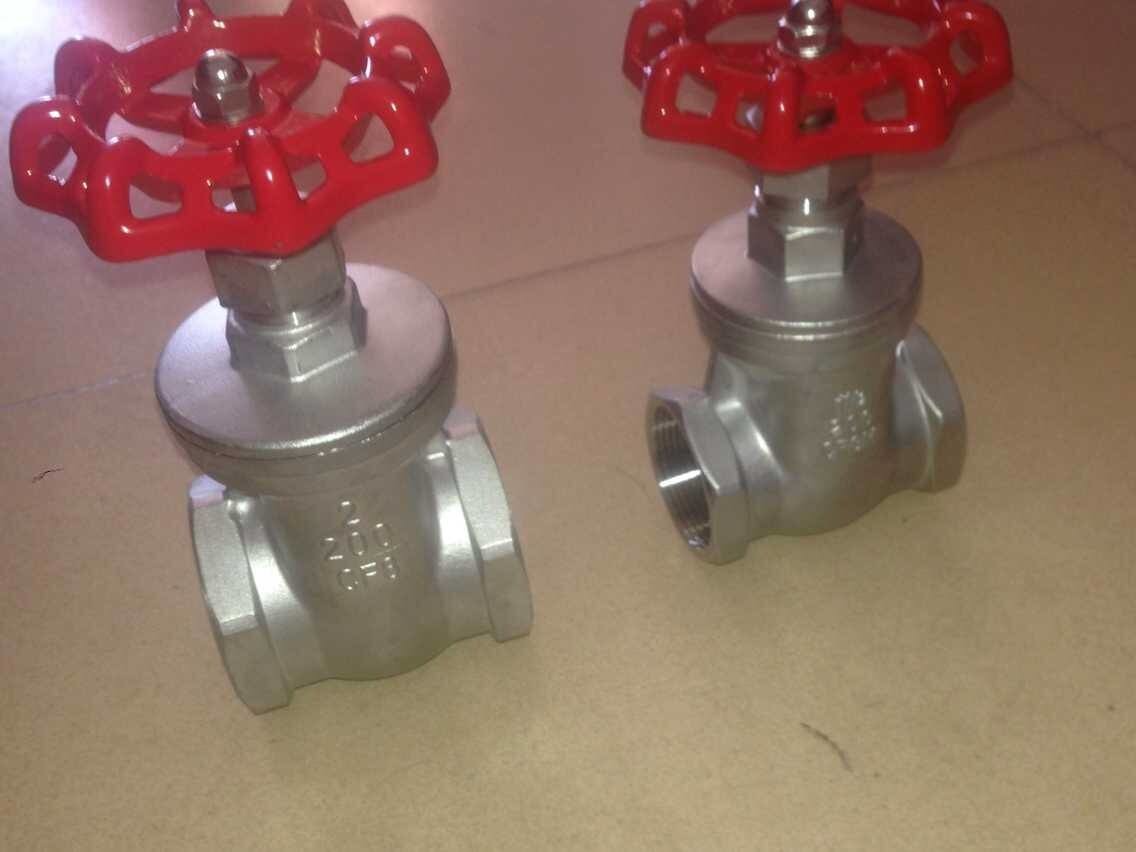

    2 Inch/Full Port/Threaded Gate Valve/ Cf8m Water Gate Valve/stainless steel gate valve/200WOG

    Ask Lasest Price
    Brand Name : KIRI
    Model Number : gate valve
    Certification : CE;ISO
    Price : flexible
    Payment Terms : L/C, T/T
    Supply Ability : flexible
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    2 Inch/Full Port/Threaded Gate Valve/ Cf8m Water Gate Valve/stainless steel gate valve/200WOG

    Description:


    KIRI Valve Co., LTD is an innovative high-tech key enterprise with the combination of design,

    research and development, manufacture, test and sales service.

    KIRI VALVE is an ISO9001 certified manufacturer of stainless steel/wcb industrial valves: Ball Valve,

    Check valve, Gate Valve, Globe Valve, Y-strainer, pipe fittings etc.


    A gate valve, also known as a sluice valve, is a valve that opens by lifting a round or rectangular

    gate / wedge out of the path of the fluid.


    1. Investment Casting Body
    2. Metal to Metal Seat
    3. Design Acc: ASME B16.34
    4. Inspection&Testing Acc: API 598
    5. Thread Acc: ANSI B1.20.1, BS21, DIN2999, ISO-9001

    Quick Detail:

    SIZE1/2”-4”TYPEFull port
    PRESSURE200WOGMATERIAL304(CF8)/316(CF8M)
    Disc304(CF8)/316(CF8M)THREADNPT/BSPT/BSPP/DIN2999

    SPecification


    Item NoPart NameMaterial
    1BodyCF8MCF8
    2DiscCF8MCF8
    3StemSS316SS304
    4BonnetCF8MCF8
    5GasketPTFE
    6GasketPTFE
    7Stem PackingSS304
    8GlandSS316SS304
    9Gland FlangeCF8MCF8
    10Hand WheelCast Iron
    11Name PlateAluminum
    12NutSS304

    Parameters

    ITEM1/2"3/4"1"1 1/4"1 1/2"2"
    D152025324050
    L556066768696
    H9299113128147168
    D17070808090100
    CV/FACTOR17.6325497135230

    Competitive Advantage:

    • GOOD QUALITY
    • RESONABLE PRICE
    • ON-TIME DELIVERY
    • PROFESSIONAL SERVICE

    KIRI VALVE is an ISO9001 ,CE certified manufacturer. All of our products must be tested before delievery.

    We provide you best solutions to assist you win the market.

    MADE IN CHINA, FOCUS ON WORLD.KIRI VALVE is looking forward to strengthening cooperation with

    various setors of society to create briliancy together.
