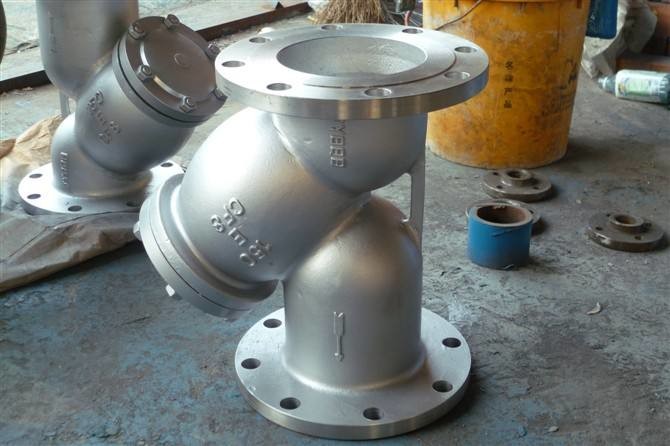

Brief introduction:
The strainer may be used on all types of pipelines to collect
granulated foreign substances and
contaminants collected. It can improve the clearance in the medium,
and prolong the life of valves
and other equipments. It is suitable for wafer, petroleum and
steam.
FEATURES
• Iron strainers are complete with Flat Face (Series 125YF) or
Raised Face (Series 250YF)
flanges in accordance with ASME B16.1.
• Strainer body meets applicable ASME Standard.
• One piece cast body.
• Strainers equipped with bolted cover flange that utilize a flat
gasket seal.
• Low pressure drop.
• Upper and lower machined seats.
• 304 SS perforated screens are standard.
• Drain/Blow-off connection furnished with plug as standard.
• Generous screen area and properly proportioned straining chamber
to minimize initial pressure
drop while maximizing time between cleanings.
• Compact end to end dimension.
Technical Specification
- Nominal diameter: 65～500mm
- Nominal pressure: 1.0/1.6/2.5Mpa
Mail part & material
Body: gray cast iron, cast iron, ductile iron
Filter: stainless steel
O-ring: NBR
STRAINER INSTALLATION INSTRUCTIONS
A . Ensure all machined surfaces are free of defects and that the
inside of the
strainer is free of foreign objects.
B . For horizontal pipelines, the strainer should be installed so
that the drain
connection is pointed downwards.
C . For flanged end strainers, the flange bolting should be
tightened gradually in
a back and forth clockwise motion.
D . Once installed, increase line pressure gradually and check for
leakage around joints
E . If the strainer is supplied with a start-up screen, monitor
pressure drop carefully.
| SIZE | INCH | 2 | 2½ | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 |
| MM | 50 | 65 | 80 | 100 | 130 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| A | INCH | 7.875 | 10 | 10.125 | 12.125 | 15.625 | 18.5 | 21.625 | 25.75 | 30 | 33.25 | 38.75 | 43.12 |
| MM | 200 | 254 | 257 | 308 | 397 | 470 | 549 | 654 | 759 | 846 | 984 | 1095 |
| B | INCH | 5.25 | 6.5 | 7.5 | 9 | 13.125 | 15.75 | 18 | 18.5 | 22 | 28.625 | 30 | 31 |
| MM | 133 | 165 | 190 | 227 | 335 | 401 | 457 | 471 | 557 | 727 | 762 | 788 |
| C | INCH | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 |
| MM | 51 | 65 | 76 | 102 | 127 | 152 | 203 | 254 | 305 | 356 | 406 | 457 |
| Weight | kgs | 13 | 16 | 21 | 30 | 43 | 60 | 90 | 140 | 175 | 392 | 627 | 1032 |
FAQ :
Q1. Do you have After-sales service ?
A1. Of course! Generally, the guarantee is 18 months after shipment
or 12 months after commissioning, Whichever occurs first! While the
customer made products could reach 30 years life span and
guarantee.
Q2. Do you have OEM service?
A2. Yes,Variety products size ,quality and quantity can be
customized according to your need.
Q3. How to proceed order in normal situation?
A3. General steps as bellow:
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the design and places deposit for formal
order.
Fourthly We arrange the production.
Q4. Which End User you have served?
A4. Such as BP, Shell, Total, PDO, Petronas,ADCO, Gazprom, CNPC,
Sinopec, CNOOC, Samsung C & T, Samsung Engineer, Amec, SWCC, Sabic,
Lukoil and so on.
