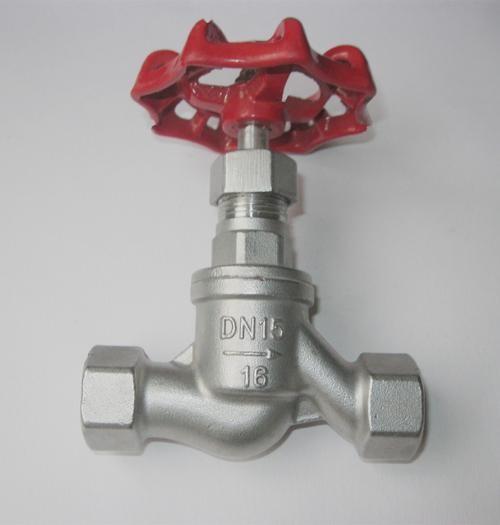

    DIN Female S Type Threaded stainless steel globe Valve 200 WOG / SS Globe Valve/NPT globe valve/

    Ask Lasest Price
    Brand Name : KIRI
    Model Number : globe valve
    Certification : CE;ISO
    Price : flexible
    Payment Terms : L/C, T/T
    Supply Ability : flexible
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    DIN Female S Type Threaded stainless steel globe Valve 200 WOG / SS Globe Valve/NPT globe valve/


    Stainless Steel 304 ANSI Globe Valves Threaded Ends 200wog
    Function Description:

    The stem axis and the seat sealing surface is vertical, and it is a very reliable valve to cut off and control.

    The characteristics of globe valve:

    1. Globe valve's structure is more simple than gate valve's, and it is more convenient in manufacturing and maintenance.

    2. Sealing surface is not easy to wear and scratch, and it has a good sealing surface and long service life.

    3. When opening and closing, disc's route is small, so the height of globe valve is smaller than gate valve, but the length of structure is longer than gate valve's.


    Application:
    Applicable Temperature: ≤425 C

    Main Materials: WCB/CF8/CF8M/CF3/CF3M

    Applicable Medium: Water / Oil / Gas / Causticity Medium

    Pressure Rating: PN10-PN100, 150LB-1500LB

    Size Range: 1/2" ~ 4"(DN15-DN100)

    DIN Female S Type Threaded stainless steel globe Valve 200 WOG / SS Globe Valve/NPT globe valve/

    DNG (in)Dimension (mm)
    LEBHA
    61/4’’6015238060
    103/8’’6015268060
    151/2’’6816319070
    203/4’’8218389870
    251’’90204610880
    321 1/4’’10521.55612090
    401’’1202363146100
    50214024.576162120

    Main Material:

    ITEMPARTMATERIAL
    1Nut304
    2Washer304
    3Handle WheelAluminium
    4Stop CapCF8MCF8
    5Gland304
    6Stem PackingPTFE
    7Washer304
    8Stem316304
    9GasketPTFE
    10BonnetCF8MCF8
    11BodyCF8MCF8
    12DiscCF8M
    Click
    • Description
    • Parameters
    • Related Products
    • Inquiry

    Parameters

    Main parts and materials
    Parts nameJ11W-16CJ11W-16PJ11W-16R
    BodyWCBZG1Cr18N9Ti
    304.CFB
    ZG1Cr18N9Ti12 Mo2Ti
    316.CF8M
    Bonnet1Cr18N9Ti
    304
    1Cr18N9Ti
    304
    1Cr18N9Ti12Mo2Ti
    316
    Stem1Cr18N9Ti
    304
    1Cr18N9Ti
    304
    1Cr18N9Ti12Mo2Ti
    316
    SealingPTFE
    PackingPTFE
    Function and specification
    TypeNominal pressure
    (MPa)
    Testing pressureSuitable tempetature (℃)Suitable medium
    Strength(water)
    (MPa)
    Enclose(water)
    (MPa)
    J41T-101.01.5
