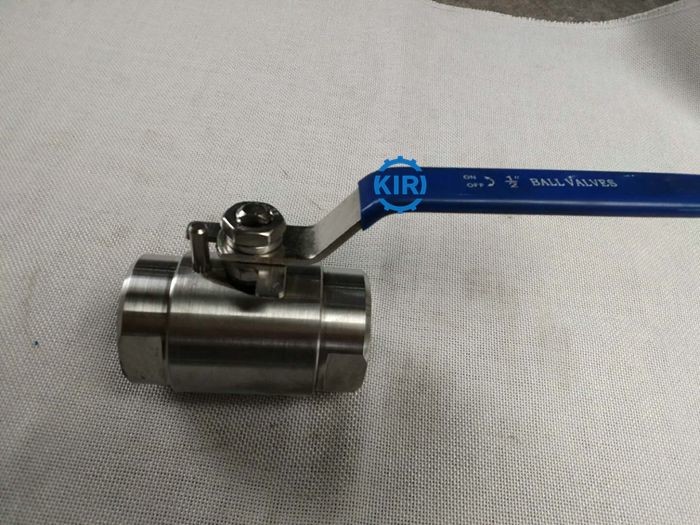

Stainless Steel High Pressure Ball Valve 1/4” - 4” Size Manual Operation

    Buy cheap Stainless Steel High Pressure Ball Valve 1/4” - 4” Size Manual Operation from wholesalers

    Buy cheap Stainless Steel High Pressure Ball Valve 1/4” - 4” Size Manual Operation from wholesalers
    • Buy cheap Stainless Steel High Pressure Ball Valve 1/4” - 4” Size Manual Operation from wholesalers

    Stainless Steel High Pressure Ball Valve 1/4” - 4” Size Manual Operation

    Ask Lasest Price
    Brand Name : KIRI or OEM
    Model Number : KRFSBV202
    Certification : CE;ISO
    • Product Details
    • Company Profile

    Stainless Steel High Pressure Ball Valve 1/4” - 4” Size Manual Operation

    Forged stainless steel high pressure ball Valve NPT end


    Applicable Standards

    Design standardANSI B16.34 / API6D / BS5351
    Face to faceASME B 16.10(or as per request)
    Thread endsASME B 1.20.1/ NPT/ BSPT/EN ISO 7-1
    Inspection and testAPI 598 / API 6D

    Poducts Description :

    Product Name2PC Forged stainless steel ball valve NPT end
    Size available1/4"~4"
    Pressure Rating range150LB~1500LB
    Ball TypeFloating Ball
    Port TypeReduced bore(RB) and Full bore(FB)
    Body MaterialF304,F316,F51 etc.
    Ball and StemSS304, SS316,F51.etc.
    Valve SeatRPTFE / PEEK / DEVLON/NYLON . etc.
    OperationManual
    Working temperature-29~220℃ degree

    Application:

    Offshore /Oil /Gas /Chemical /Petrochemical

    Notes: The specifications can be designed and satisfied for customers' special requirements

    We have obtained Certificates of CE, API 6D, and ISO 9001

    Main part name and material(Normal type)


    No.Part nameA105F304/F316
    1BodyA105F304/F316
    2BallSS316SS304/SS316
    3StemSS316SS304/SS316
    4SeatRPTFERPTFE
    5GasketO ringO ring
    6PackingPTFE/GraphitePTFE/Graphite
    7Thrust gasketPTFEPTFE
    8Position plateSS304SS304
    9LeverSS304SS304
    10Position pinSS304SS304
    11Locking nutSS304SS304

    Main dimension(for 150lb-800lb)Other dimension is available on request,pls contact with us


    sizedLHW
    1/4"9.56855160
    3/8"9.56855160
    1/2"137060160
    3/4"178065160
    1"239565160
    1.1/4"3011585170
    1.1/2"38125105230
    2”48135110230
