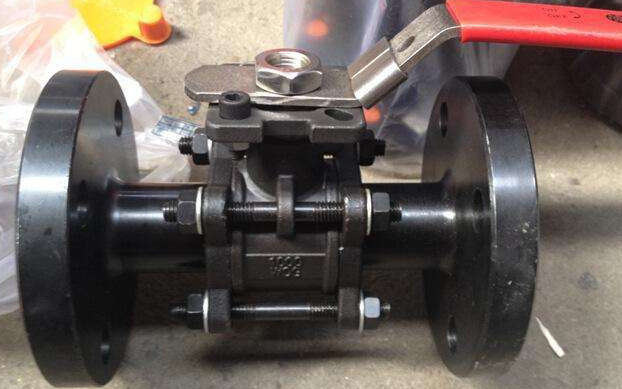

3PC Flanged Ball Valve ASTM A216 WCB 2 Inch Carbon Steel Ball
Valves for,A105,150LB,JIS 10K,PPL,PTFE
Description:
Our products sell well both at home and abroad. And exported to
more than 10 countries all over the world.
Ball valve is a form of quarter-turn valve which uses a floating
ball to control flow through it.
3PC flanged ball valves are generally slightly reduced (or
standard) bore, they can be either throw-away or repairable.
Size: 1/2"-4"
Material: CARBON STEEL WCB/DIN1.0619
STAINLESS STEEL 304/1.4308
STAINLESS STEEL 316/1.4408
Full Port
Seat or Sealing: PTFE or as request.
Temperature Range: -20℃ to 150℃
Working Medium: Water, Oil, Gas, Acid, etc
Blow-Out Proof Stem
Investment Casting Body
Design ACC: ASME B16.34
Face to Face: DIN3202-F1
Flange Dimensions: DIN2633
Inspection&Testing Acc: API 598
Main export markets:
- European markets
- Central/South America
- Middle East
- South Africa
- Asia
Customized samples and drawings are accepted.
Trade terms: CIF, CFR, FOB, EXW, etc.
Payment terms: T/T 30% deposit prepaied, and pay the spare money
before the shipping the goods.
Package detail: Inner CTN, outside ply-wooden case
Specification
| Item No | Part Name | Material |
| 1 | Nut | SS304/SS201 |
| 2 | Spring Washer | SS304/SS201 |
| 3 | Cap | CF8M/CF8/WCB |
| 4 | Body Gasket | PTFE/RPTFE |
| 5 | Ball Seat | PTFE/RPTFE |
| 6 | Ball | SS316/SS304/SS201 |
| 7 | Body | CF8M/CF8/WCB |
| 8 | Thrust Washer | PTFE |
| 9 | O-Ring | Viton |
| 10 | V-Ring Packing | PTFE |
| 11 | Gland | SS304/SS201 |
| 12 | Belleville Washer | SS304/SS201 |
| 13 | Stop Nut | SS304/SS201 |
| 14 | Stop Washer | SS304/SS201 |
| 15 | Washer | SS304/SS201 |
| 16 | Handle | SS304/SS201 |
| 17 | Stem Nut | SS304/SS201 |
| 18 | Locking device | SS201 |
| 19 | Handle Cover | PLASTIC |
| 20 | Stem | SS316/SS304/SS201 |
| 21 | Bolt | SS304/SS201 |
| Size | φd | L | H | H2 | W | φR | φC | φD | οP | N-φM | T | F | Torque N.M | ISO 5211 |
| 1/2” | 15 | 130 | 77 | 8 | 110 | 45 | 65 | 95 | 9 | 4-14 | 14 | 2 | 7 | F03/F04 |
| 3/4” | 20 | 150 | 89 | 8 | 110 | 58 | 75 | 105 | 9 | 4-14 | 16 | 2 | 9 | F03/F04 |
| 1” | 25 | 160 | 92 | 10 | 160 | 68 | 85 | 115 | 11 | 4-14 | 16 | 2 | 11 | F04/F05 |
| 1-1/4” | 32 | 180 | 97 | 10 | 160 | 78 | 100 | 140 | 11 | 4-18 | 16 | 2 | 18 | F04/F05 |
| 1-1/2” | 38 | 200 | 111 | 14 | 185 | 88 | 110 | 150 | 14 | 4-18 | 16 | 3 | 23 | F05/F07 |
| 2” | 50 | 230 | 120 | 14 | 185 | 102 | 125 | 165 | 14 | 4-18 | 18 | 3 | 28 | F05/F07 |
| 2-1/2” | 65 | 290 | 145 | 18 | 250 | 122 | 145 | 185 | 17 | 4-18 | 18 | 3 | 55 | F07/F10 |
| 3” | 78 | 310 | 456 | 18 | 280 | 138 | 160 | 200 | 17 | 8-18 | 20 | 3 | 90 | F07/F10 |
| 4” | 100 | 350 | 168 | 18 | 310 | 158 | 180 | 220 | 19 | 8-18 | 20 | 3 | 120 | F07/F10 |
FAQ:
Are you trade company?
No, we are a ISO9001/ CE manufacturer.
What's your advantages?
Good quality can be guaranteed. KIRI VALVE is an ISO9001 ,CE certified manufacturer. All of our
products must be tested before
delivery.
Competative price.
Good quality at competative price will help you to win your market.
On-time delivery.
One stop service will improve the efficiency.
Sincere sevice:
We will reply you with 24 hours in working days, and will patiently
answer every problem.
What's your payment terms?
It can be negotiable.
Generally, T/T 30% deposit prepaied, and pay the spare money before
the shipping the goods.
