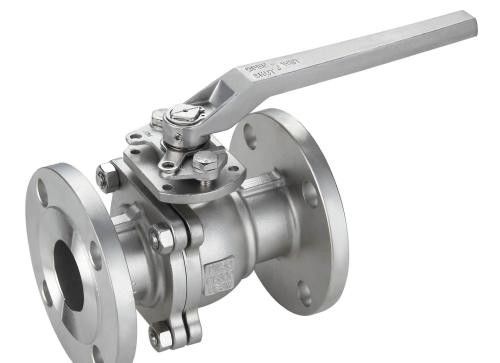

    DIN 2pc Floating Type Stainless Steel Ball Valve With ISO5211 Direct Flange End Cf8m/SS ball valve/150LB

    Ask Lasest Price
    Brand Name : KIRI or OEM
    Model Number : ball valve
    Certification : CE;ISO
    Price : Negotiable
    Payment Terms : T/T, Western Union, PayPal, etc. 30% prepayment, 70% balance paid before shipping or against copy of BL
    Supply Ability : 3000pcs/week
    Delivery Time : 5 Days
    • Product Details
    • Company Profile

    DIN 2pc Floating Type Stainless Steel Ball Valve With ISO5211 Direct Flange End Cf8m/SS ball valve/150LB


    DIN Stainless steel valves 2pc floating type ball valve type with ISO5211 direct mounting pad

    Description:


    Ball valve is widely used in chemical, petroleum, electric power, pharmacy, beer, food, dairy beverage, cosmetic and water factory etc. Ball valve is a form of quarter-turn valve which uses a floating ball to control flow through it.

    2PC flanged ball valves are generally slightly reduced (or standard) bore, they can be either throw-away or repairable.

    Product NameDIN Stainless steel valves 2pc floating type ball valve type with ISO5211 direct mounting pad
    1. Material1.4408/1.4308
    2. Size1/2''~4'' ( DN15~DN100)
    3.CertificateISO9001 & CE
    4. PortFull Port
    5. Working PressurePN16~PN40
    6. Connection EndsFlange(RF/RTJ)
    7. Working Temp.-196ºC~450ºC(Different temperature choose different materials)
    8. Suitable MediumWater, Steam, Oil and natural gas etc.
    9. SeatPTFE, RPTFE, PPL
    10. LockableOptional
    Technical Spec.
    Design&Manufacture ACC.DIN3357
    Face to Face Acc.DIN3202
    Flanged StandardDIN3205
    Inspection & TestingAccording to DIN2401
    Shipment
    Delivery Time15~20 Days
    PackageStandard Exporting Plywood Case
    Shipping PortNingbo/Shanghai, China
    Shipping TermsExw, FOB, CFR, CIF, etc.
    Payment TermsT/T, Western Union, PayPal, etc.
    30% prepayment, 70% balance paid before shipping or against copy of BL
    Warranty18 Months after leaving factory
    AdvantageOEM/ODM is applicable
    OthersWe also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer

    DIN 2pc Floating Type Stainless Steel Ball Valve With ISO5211 Direct Flange End Cf8m/SS ball valve/150LB


    Specification

    Item NoPart NameMaterial
    1NutSS304/SS201
    2StudSS304/SS201
    3Cap1.4408/1.4308
    4Body GasketPTFE/RPTFE
    5SeatPTFE/RPTFE
    6BallSS316/SS304/SS201
    7Body1.4408/1.4308
    8Thrust WasherPTFE
    9Stem PackingPTFE
    10StemSS316/SS304/SS201
    11Stop CapSS304/SS201
    12BoltSS304/SS201
    13Locking PinSS304/SS201
    14Locking NutSS304/SS201
    15HandlePlastic
    16Stop WasherSS304/SS201

    DIN PN16 UNIT:mm

    SizeφdLHWφRφCφDN-φMTFTorque N.M
    1/2”1511577.51484565954-141427
    3/4”201207914859751054-141629
    1”251258814868851154-1416211
    1-1/4”32130100170781001404-1816218
    1-1/2”38140122230881101504-1816323
    2”501501302301021251654-1818328
    2-1/2”651701482301221451854-1818355
    3”781801673101381602008-1820390
    4”1001901883101581802208-18203120
    5”1253252385001882102508-18223268
    6”150350278.56452122402858-22223335
    8”20040034084526829534012-22243

    650


    DIN 2pc Floating Type Stainless Steel Ball Valve With ISO5211 Direct Flange End Cf8m/SS ball valve/150LB


    FAQ:

    Are you trade company?


    No, we are a ISO9001/ CE manufacturer.


    What's your advantages?

    • Good quality can be guaranteed. KIRI VALVE is an ISO9001 ,CE certified manufacturer. All of our products must be tested before
      delivery.

      Competative price.

      Good quality at competative price will help you to win your market.

      On-time delivery.

      One stop service will improve the efficiency.

      Sincere sevice:

      We will reply you with 24 hours in working days, and will patiently answer every problem.

    What's your payment terms?


    It can be negotiable.

    Generally, T/T 30% deposit prepaied, and pay the spare money before the shipping the goods.
