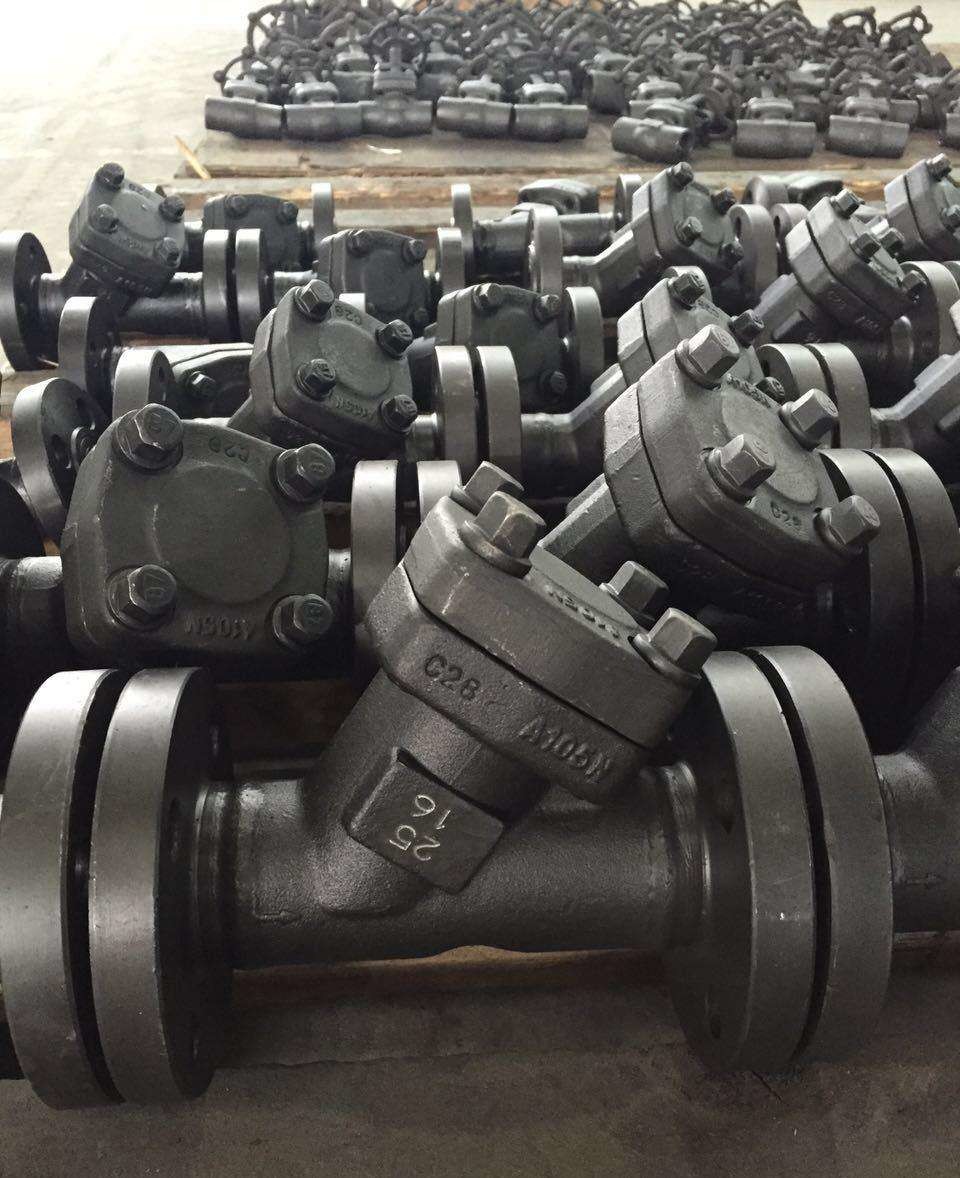

High Pressure Small Size Y Type Strainer Ansi 800LB - 1500LB In
Black Color
Quick Details
1. Product: Forged Y Type Strainer
2. Sizes: 1/2" -2"
3. Pressure rating: ANSI 150LB - 600LB, 800LB, 900LB, 1500LB
4. Suitable medium: Water, gas, oil, steam etc.
5. Body material: Forged Steel A105, LF2, SS304, SS316, SS304L, SS316L, F51, F53 Etc.
6. Screen: Stainless steel (304SS, 316SS)
7. End connection: SW, NPT, BW, RF, RTJ
Generally
1. Strainer is a kind of equipment that eliminates a small amount
of impurities from liquid and gases. It can protect normal
operation to compressor, pump and other equipment as well as
instruments, also it can upgrade liquid and gases quality. So it
can be widely used in petroleum, chemical industry, chemical fibre,
pharmaceutical and food industry etc.
2. Main Technical Paremeters
A) Operating Temperature(oC):CS:-30~380oC, SS: -80~450oC;
B) Operating Pressure(Mpa): 0.6 ~ 25.0 Mpa
C) Body Material: A105 N, LF2, SS304, SS304L, SS316, SS316L, DSS
etc.
D) Seal Material : Asbestos, NBR, PTFE, Graphite+SS.
E) Strainer Element Material: Stainless steel, Duplex Stainless
Steel
F) Screen mesh from 10 mesh to 400 mesh,also we can produce
according to customer's repuinement.
G) Shell inspection And Test: ISO5208 / API598
Y Type Strainer Features
A compact type strainer with low fluid resistance and requiring
less installation space.
The Y type strainer can be widely used for removing dirt and dust
from pipelines.
Lightweight, compact, and designed for easy piping, the Y type
strainer comes in a wide variety of structures, shapes, and mesh
types.
Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as
water, ammonia, oil and hydrocarbon products etc.
B) Corrosive medium for chemical products such as sodium hydrate,
caustic soda, metric acid, acetic acid etc.
C) Low temperature medium for refrigeration, the refrigerant such
as liquefied methane, liquefied ammonia, oxygen etc.
D) Industry hygiene medium in light industry, foodstuff and
pharmacy such as beer, drink, beverage, dairy products etc.
Temperature-pressure rate
CL150-285 P.S.I @100° F
CL300 - 740 P.S.I @100° F
CL600 -1480 P.S.I @100° F
CL800 -1975 P.S.I @100° F
CL1500 - 3705 P.S.I @100° F
CL2500 - 6170 P.S.I @100° F
Descriptions
1. Forged Y Type Strainer Standards
| 1. Design and manufacture: | BS 5352 |
| 2. Inspection and test: | API 598 |
| 3. Structure feathers: | Bolted bonnet, welded bonnet, Pressure sealing bonnet |
| 4. End connections: | |
| SCREWED | ANSI B1.20.1 (NPT)/BS21 /BSP) |
| BUTTWELD | ANSI B16.25 |
| SOCKET WELDING | ANSI B16.11 |
| FLANGED | ANSI B16.5 |

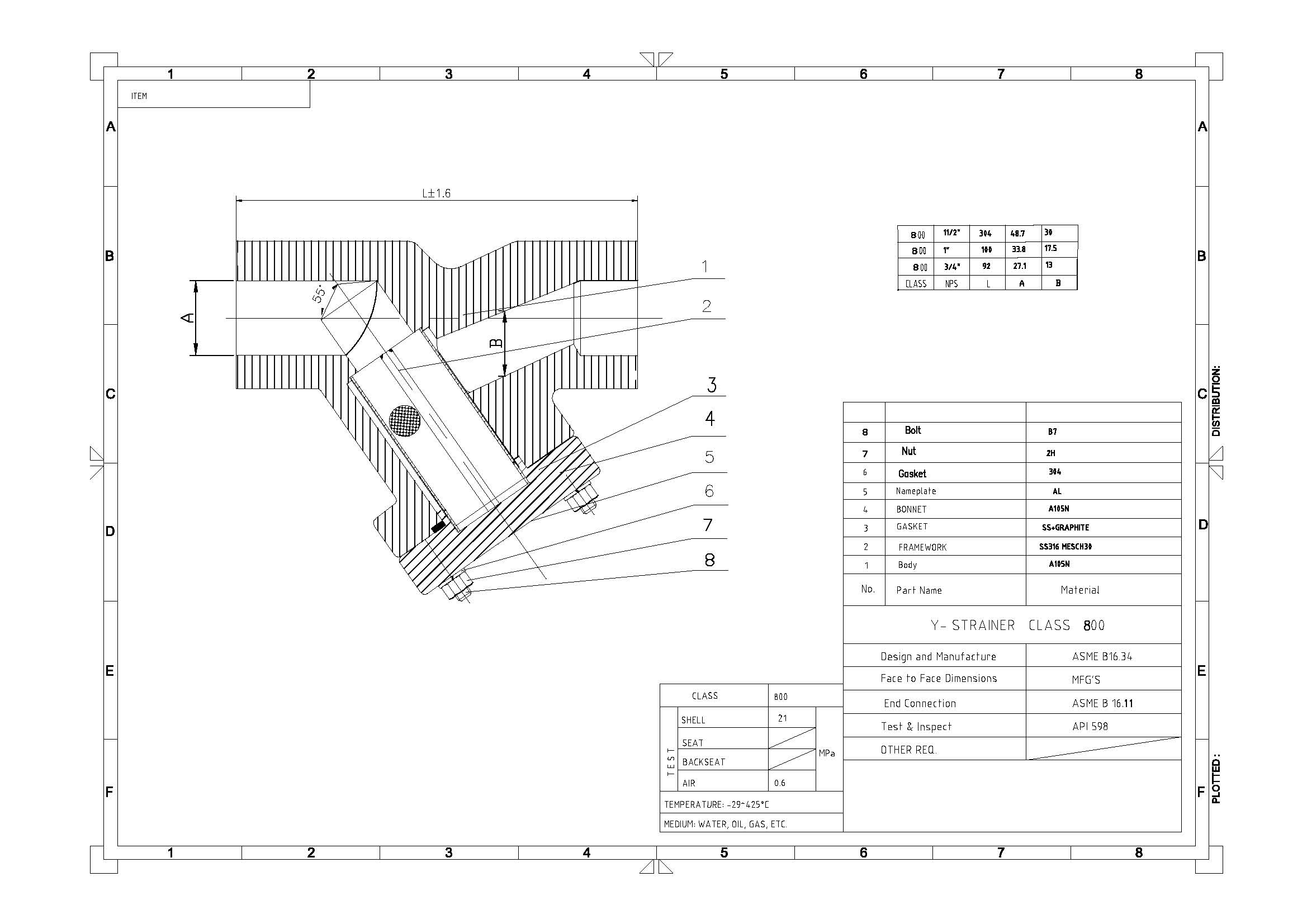

2. Main Parts and Material List For Forged Y Type Strainer
| No. | Part name | Material |
| 1 | Body | A105(N) | A350-LF2 | A182-F11 | F304(L) | F316(L) | F51 |
| 5 | Gasket | Graphite+304SS/316SS |
| 6 | Bonnet | A105(N) | A350-LF2 | A182-F11 | F304(L) | F316(L) | F51 |
| 7 | Bolt | B7 | L7 | B16 | B8(M) | B8(M) | B8M |
| 15 | Nameplate | Standards |
| 32 | Rivet | H62 |
| 40 | Screen | 304SS/304LSS/316SS/316LSS |
3. Main Connection Dimensions
CLASS 800 Bolted bonnet : Full port or Reduced port
Size (NPS) | R.P | - | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
| F.P. | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 |
| Face to face (mm) | L | 98 | 98 | 98 | 120 | 140 | 140 | 170 |
| Height (mm) | H | 70 | 70 | 70 | 100 | 110 | 120 | 120 |
| Weight(kgs) | 2.2 | 2.2 | 2.1 | 4.2 | 8.9 | 8.9 | 10 |
CLASS900-CLASS1500 Bolted bonnet : Full port
| Size | F.P | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
| Face to face (mm) | L | 120 | 120 | 120 | 140 | 170 | 170 | 220 |
| Height (mm) | H | 70 | 70 | 100 | 110 | 110 | 120 | 150 |
| Weight(kgs) | 2.1 | 4.2 | 9.0 | 8.9 | 10 | 18.6 | 20 |
